Compatible with BMW motorcycle models equipped with a Wonder wheel, allowing for safe and efficient operation of the CHIGEE Display without the need to remove hands from the handlebars.

Understanding Wonderwheel Control Logic

※During setup, all you need to do is plug the CGRC CAN into one of two module interfaces: either the 4-pin port for the RDC module, which handles tire pressure monitoring, or the 8-pin port for the DWA module, which is the bike's anti-theft alarm system. While our online guides recommend certain purchases, they are suggestions for reference only. If upon inspecting your BMW, you find that a DWA or RDC module would allow for easier installation, feel free to purchase the appropriate pin connectors based on your specific bike's fitment.

※Notice for K1600 & 1200RT & 1250RT & R1300RT Owner: Wonderwheel Compatibility

※For R 1300 GS & R 1300 GS ADV, Please select the 6-Pin option and insert it into the DWA module (A263*1B). If you wish to keep the BMW Navigator and prefer not to connect the CGRC LIN to the 3-pin navigation interface, the 6-Pin option will be the ideal choice.

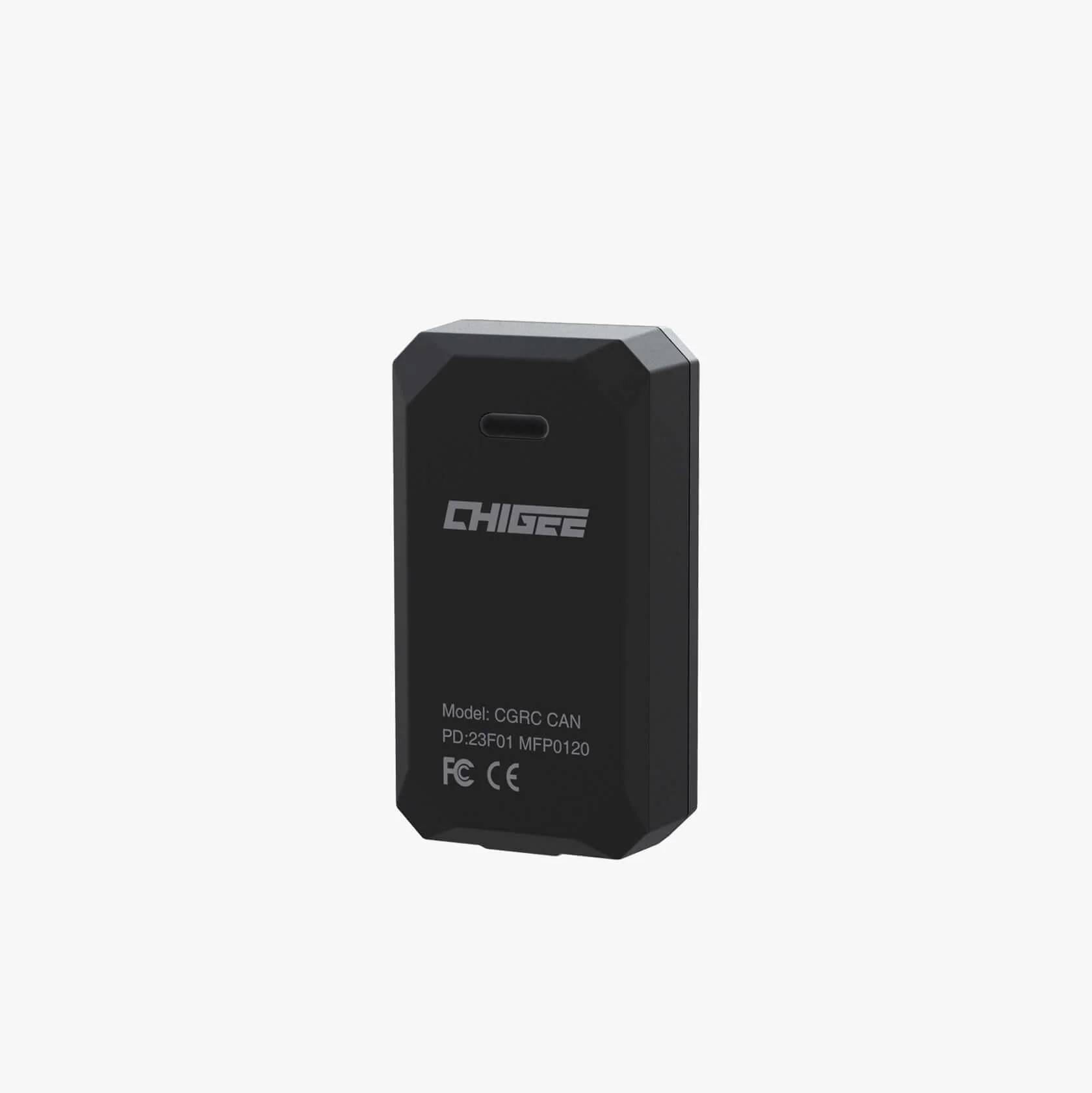

Introduction to CGRC CAN
